1. ZT703-F air filter outlet pipe
Code de marchandise：1226800-038000
|
|
|
|
|
|
|
|
2. ZT703-F Air Filter Lower Housing (ETC)
Code de marchandise：1226800-278000
|
|
|
|
|
|
|
|
3. ZT703-F air filter upper housing
Code de marchandise：1226800-036000
|
|
|
|
|
|
|
|
4. ZT703-F air filter left intake chamber
Code de marchandise：1226800-035000
|
|
|
|
|
|
|
|
5. ZT703-F Air Filter Element (carton packaging)
Code de marchandise：1226800-162000
|
|
|
|
|
|
|
|
6. ZT703-F air filter connecting tube
Code de marchandise：1246800-026000
|
|
|
|
|
|
|
|
7. ZT310PKE External antenna mount(after-sale)
Code de marchandise：1224200-283000
|
|
|
|
|
|
|
|

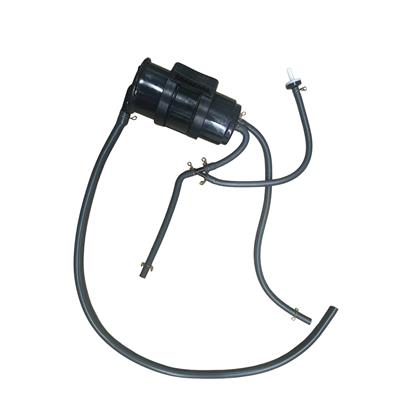

8. ZT703-F Carbon Canister (Ⅱ)
Code de marchandise：1226800-432000
|
|
|
|
|
|
|
|
9. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)(5 pcs/after-sale)
Code de marchandise：1251100-923094
|
|
|
|
|
|
|
|
10. GB845ST4.8×20(Flat Tail Eco-Colour)(5 pcs/after-sale)
Code de marchandise：1250204-079000
|
|
|
|
|
|
|
|
11. Non-standard bolts M6×16 (environmental color)
Code de marchandise：1251100-120093
|
|
|
|
|
|
|
|
12. Φ59×9 pipe clamp assembly(after-sale)
Code de marchandise：1051371-042000
|
|
|
|
|
|
|
|
13. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy/Ⅱ)(5 pcs/after-sale)
Code de marchandise：1251112-327000
|
|
|
|
|
|
|
|
Inventaire local
|
Prix unitaire (￥)
|
Quantité demandée
|
Quantité
|
montant (￥)
|
Sélection
|
Acheter
|
|
Adéquat
|
4
|
|
|
|
|
|
|
Remarks:T30 or 8# sleeve.Starting from June 24,2025, the original "GB16674 M6×16 Hexagon Flange Bolt (Grade 9.8 / Environmentally Friendly Color Zinc Plated)" for the 703F model will be replaced with this new type of bolt. If you need to purchase the original bolt, you can get it from the 2024 model 368 scooter. To ensure appearance consistency, it is recommended to replace all bolts at the same position with the new ones together.Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
|
|
14. YH secondary air supply valve
Code de marchandise：1050973-008000
|
|
|
|
|
|
|
|
15. 703F Make-up Valve Bracket
Code de marchandise：1050975-001000
|
|
|
|
|
|
|
|
16. ZT369MU Nylon Tee Pipe(φ14)
Code de marchandise：1050973-009000
|
|
|
|
|
|
|
|
17. ZT700-F Replenishment Valve Rubber Hose-1
Code de marchandise：1246800-048000
|
|
|
|
|
|
|
|
18. ZT700-F Replenishment Valve Rubber Hose-2
Code de marchandise：1246800-049000
|
|
|
|
|
|
|
|
19. ZT700-F Replenishment Valve Rubber Hose-3
Code de marchandise：1246800-050000
|
|
|
|
|
|
|
|
20. ZT700-F Replenishment Valve Rubber Hose-4
Code de marchandise：1246800-051000
|
|
|
|
|
|
|
|
21. Hexagonal Small Flanged Internal Star Bolt M6×12 (Grade 9.8 / Zinc-Nickel Alloy)(5 pcs/after-sale)
Code de marchandise：1251112-312000
|
|
|
|
|
|
|
|
Inventaire local
|
Prix unitaire (￥)
|
Quantité demandée
|
Quantité
|
montant (￥)
|
Sélection
|
Acheter
|
|
Adéquat
|
4
|
|
|
|
|
|
|
Note: Starting from June 24,2025, the original "1250101-059000 GB16674M6×12 (Grade 9.8 / Eco-friendly Coated)" for the 703F model has been replaced with this new bolt. If you need to purchase the original bolt, you can get it for the 2024 368 scooter model. To ensure consistent appearance, it is recommended to replace all bolts at the same location with the new version together. Since this part is small, to facilitate packaging and shipping, it is required to sell this part in units of 5 pieces per pack/bag/box, meaning one part number corresponds to 5 units of this component. The assembly quantity listed in the assembly only indicates the actual usage of this part in the current assembly (it is not multiplied by 5), so please pay close attention to the quantity when placing an order (calculate as assembly quantity × 5) to avoid over-purchasing. Example: The assembly quantity of the ZT250－S expansion bolt (5 pcs/set - after-sales) in the assembly is 2, and the quantity added to the shopping cart is 2; the actual delivered quantity will be 10 (5×2= 10) pieces of ZT250－S expansion bolts, and so on.
|
|
|
|
|
|
22. Air filter intake temperature sensor (flange type)(after-sale)
Code de marchandise：1050972-025000
|
|
|
|
|
|
|
|
23. Ambient Temperature Sensor
Code de marchandise：1186600-043000
|
|
|
|
|
|
|
|
24. ZT703-F canister rebound value
Code de marchandise：1226800-430000
|
|
|
|
|
|
|
|
