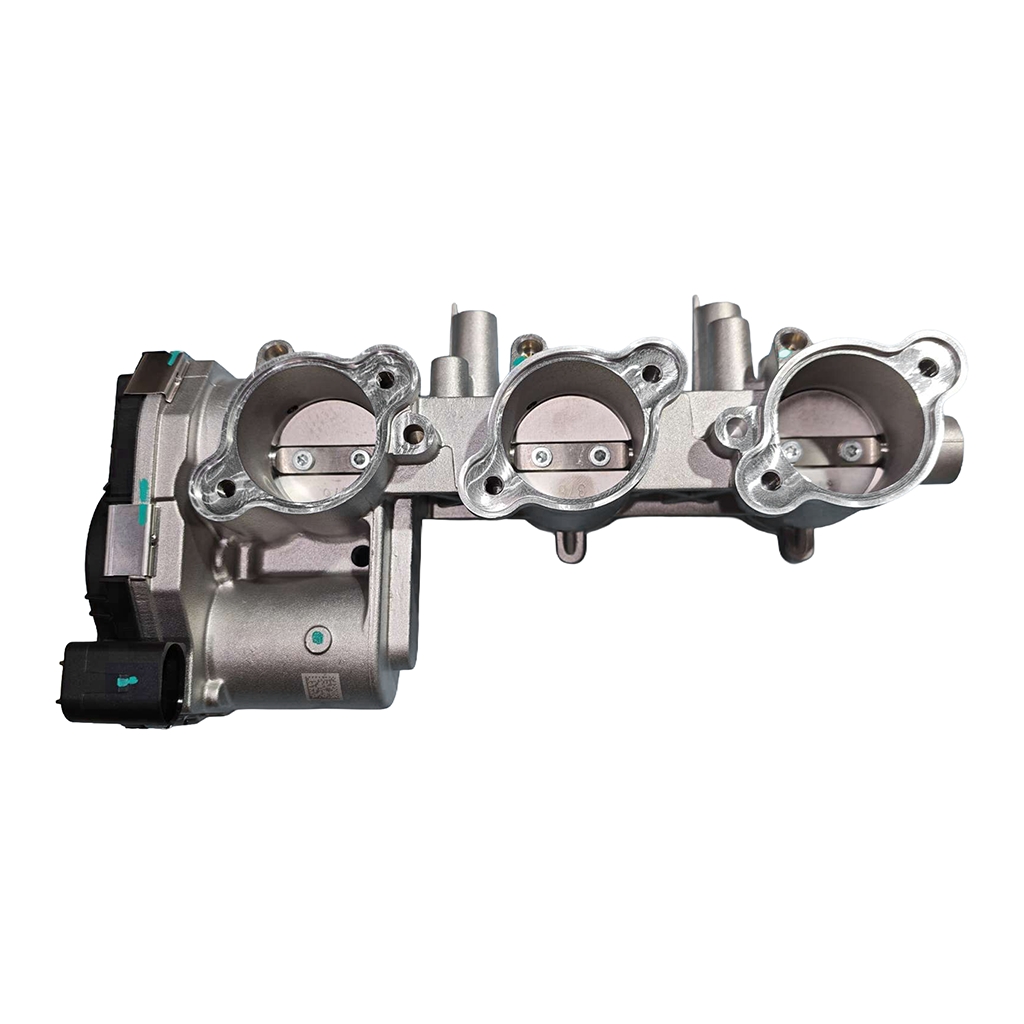

1. M337 electronic throttle body assembly (ETC)(after-sale)
Code de marchandise：1050975-077000
|
|
|
|
|
|
|
|
2. ZT370MU Electronic Throttle Carbon Canister Desorption Tube - 1 (ETC)
Code de marchandise：1246800-121000
|
|
|
|
|
|
|
|
3. ZT370MU Electronic Throttle Carbon Canister Desorption Tube - 2 (ETC)
Code de marchandise：1246800-120000
|
|
|
|
|
|
|
|
4. ZT370MU Electronic Throttle Carbon Canister Desorption Tube - 3 (ETC)
Code de marchandise：1246800-119000
|
|
|
|
|
|
|
|
5. ZT370MU Electronic Throttle Carbon Canister Desorption Tube - 4 (ETC)
Code de marchandise：1246800-123000
|
|
|
|
|
|
|
|
6. GB9074.13 M5×12 Cross Hexagon bolt(5 pcs/after-sale)
Code de marchandise：1050975-086000
|
|
|
|
|
|
|
|
7. ZT703F Pressure sensor fixing bracket (ETC)
Code de marchandise：1050975-023000
|
|
|
|
|
|
|
|
8. GB9074.13 Hexagon cross groove spring,flat cushion combination bolt M5×20(5 pcs/after-sale)
Code de marchandise：1050975-088000
|
|
|
|
|
|
|
|
9. External intake pressure sensor MAP01 (18590H7U300)
Code de marchandise：1050961-003000
|
|
|
|
|
|
|
|
10. ZT370MU Pressure Sensor Rubber Tube (ETC)
Code de marchandise：1246800-124000
|
|
|
|
|
|
|
|
11. Pressure sensor fixing rubber sleeve(5 pcs/after-sale)
Code de marchandise：1050975-075000
|
|
|
|
|
|
|
|
12. ZT370MU Electronic Throttle Rubber Sleeve (ETC)
Code de marchandise：1246800-122000
|
|
|
|
|
|
|
|
13. Nylon spool (inner diameter 2 outer diameter 4)
Code de marchandise：1050961-018000
|
|
|
|
|
|
|
|
14. Hexagonal Small Flanged Internal Star Bolt M6×12 (Grade 9.8 / Zinc-Nickel Alloy)(5 pcs/after-sale)
Code de marchandise：1251112-312000
|
|
|
|
|
|
|
|
Inventaire local
|
Prix unitaire (￥)
|
Quantité demandée
|
Quantité
|
montant (￥)
|
Sélection
|
Acheter
|
|
Adéquat
|
4
|
|
|
|
|
|
|
Note: Starting from June 24,2025, the original "1250101-059000 GB16674M6×12 (Grade 9.8 / Eco-friendly Coated)" for the 703F model has been replaced with this new bolt. If you need to purchase the original bolt, you can get it for the 2024 368 scooter model. To ensure consistent appearance, it is recommended to replace all bolts at the same location with the new version together. Since this part is small, to facilitate packaging and shipping, it is required to sell this part in units of 5 pieces per pack/bag/box, meaning one part number corresponds to 5 units of this component. The assembly quantity listed in the assembly only indicates the actual usage of this part in the current assembly (it is not multiplied by 5), so please pay close attention to the quantity when placing an order (calculate as assembly quantity × 5) to avoid over-purchasing. Example: The assembly quantity of the ZT250－S expansion bolt (5 pcs/set - after-sales) in the assembly is 2, and the quantity added to the shopping cart is 2; the actual delivered quantity will be 10 (5×2= 10) pieces of ZT250－S expansion bolts, and so on.
|
|
|
|
|
|
15. ZT370MU fuel rail limit circlip
Code de marchandise：1050975-031000
|
|
|
|
|
|
|
|
16. ZT369MT High-Pressure Fuel Rail (ETC)
Code de marchandise：1050961-007000
|
|
|
|
|
|
|
|
17. Reverse buckle Velcro strap (20×150mm)(5 pcs/after-sale)
Code de marchandise：1100102-012000
|
|
|
|
|
|
|
|
Code de marchandise：1050961-037000
|
|
|
|
|
|
|
|
19. Φ54×10 pipe clamp assembly(after-sale)
Code de marchandise：1050976-051000
|
|
|
|
|
|
|
|
20. ZT369MT intake duct assembly
Code de marchandise：1050961-023000
|
|
|
|
|
|
|
|
21. 38×2.5 Fluorine rubber O-ring
Code de marchandise：1051457-004000
|
|
|
|
|
|
|
|
22. Hexagonal small flange internal plum blossom bolt M6 × 22(9.8/zinc nickel alloy)(5 pcs/after-sale)
Code de marchandise：1251112-309000
|
|
|
|
|
|
|
|
23. ZT703-F high-pressure fuel pipe sub-assembly (ETC)
Code de marchandise：1050973-016000
|
|
|
|
|
|
|
|
