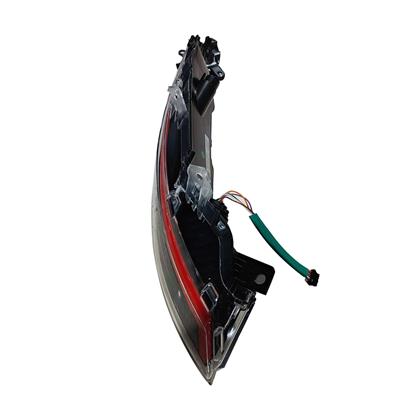

1. ZT368T-E-B1 Right Tail Light (25 Model)
Code de marchandise:1176400-049000
|
|
|
|
|
|
|
|

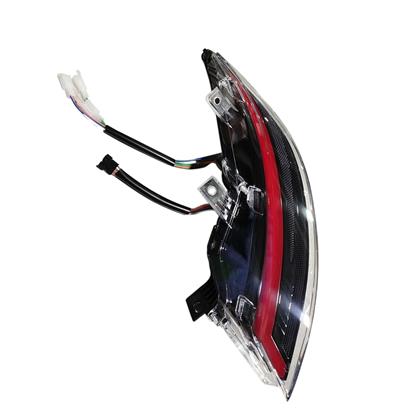

2. ZT368T-E-B1 Left Tail Light (25 Model)
Code de marchandise:1176400-050000
|
|
|
|
|
|
|
|
3. ZT368T-E rear magnesium alloy bracket
Code de marchandise:1276600-076000
|
|
|
|
|
|
|
|
4. Hexagonal Flanged Internal Star Bolt M8×30 (Grade 10.9 / Eco-friendly Color Zinc)(5 pcs/after-sale)
Code de marchandise:1251112-218000
|
|
|
|
|
|
|
|
5. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy/Ⅱ)(5 pcs/after-sale)
Code de marchandise:1251112-327000
|
|
|
|
|
|
|
|
Inventaire local
|
Prix unitaire (¥)
|
Quantité demandée
|
Quantité
|
montant (¥)
|
Sélection
|
Acheter
|
|
Adéquat
|
4
|
|
|
|
|
|
|
Remarks:T30 or 8# sleeve.Starting from June 24,2025, the original "GB16674 M6×16 Hexagon Flange Bolt (Grade 9.8 / Environmentally Friendly Color Zinc Plated)" for the 703F model will be replaced with this new type of bolt. If you need to purchase the original bolt, you can get it from the 2024 model 368 scooter. To ensure appearance consistency, it is recommended to replace all bolts at the same position with the new ones together.Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
|
|
6. ZT250-S flanging sleeve(φ6.4×φ9×6+φ20×2)(5 pcs/after-sale)
Code de marchandise:1274101-015000
|
|
|
|
|
|
|
|
7. ZT250-S Flanging bushing buffer(5 pcs/after-sale)
Code de marchandise:1244100-137000
|
|
|
|
|
|
|
|
8. Inner plum blossom shaft shoulder screw M6×14+ φ8.5×2.9 (304 stainless steel)(5 pcs/after-sale)
Code de marchandise:1251100-923094
|
|
|
|
|
|
|
|
9. Non standard internal plum blossom bolt M6×16 (304 stainless steel)(5 pcs/after-sale)
Code de marchandise:1251100-927000
|
|
|
|
|
|
|
|
10. ZT350T-E Tail Plate Cover (II)
Code de marchandise:1226400-636000
|
|
|
|
|
|
|
|
11. ZT350T-E tail light anti-abrasion glue
Code de marchandise:1246400-037000
|
|
|
|
|
|
|
|
Code de marchandise:1226400-102000
|
|
|
|
|
|
|
|
13. Plywood M6×11×15(zinc-nickel)(5 pcs/after-sale)
Code de marchandise:1251300-202094
|
|
|
|
|
|
|
|
14. SK150-Z license plate light
Code de marchandise:1170300-105000
|
|
|
|
|
|
|
|
15. ZT250-S rear reflector(after-sale)
Code de marchandise:1174100-015000
|
|
|
|
|
|
|
|
16. ZT250-S rear liceness buffer rubber(5 pcs/after-sale)
Code de marchandise:1244100-136000
|
|
|
|
|
|
|
|
17. GB6177.1M6 (environmental color)(5 pcs/after-sale)
Code de marchandise:1250303-040093
|
|
|
|
|
|
|
|
18. HJ125-6 rear license light bracket
Code de marchandise:1270300-039000
|
|
|
|
|
|
|
|
19. ZT368T-E Rear Mudguard Bottom Liner(after-sale)
Code de marchandise:1226401-331000
|
|
|
|
|
|
|
|
20. ZT250-S Expansion nail(5 pcs/after-sale)
Code de marchandise:1224100-089000
|
|
|
|
|
|
|
|
21. Non-standard self-Tapping bolt ST4.2×12(environmental color)
Code de marchandise:1251200-033093
|
|
|
|
|
|
|
|
22. Rear advertising plate (ZONTES)(after-sale)
Code de marchandise:1210401-442000
|
|
|
|
|
|
|
|
23. ZT368T Rear Camera (L=600/II)(after-sale)
Code de marchandise:1186601-016000
|
|
|
|
|
|
|
|
24. ZT368T-E Rear Camera Bracket
Code de marchandise:1276400-391000
|
|
|
|
|
|
|
|
