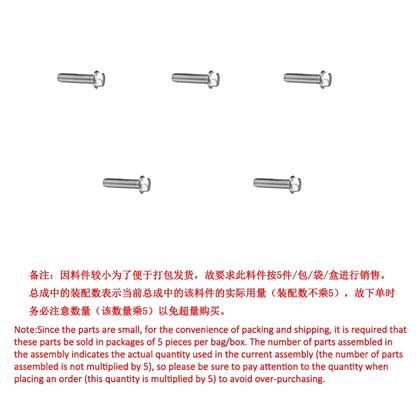

1. GB70.1 M6x60 (stainless steel)
Code de marchandise：1250205-128000
|
|
|
|
|
|
|
|
2. ZT703-F Right Hand Handle Balance Weight(210g)
Code de marchandise：1136800-032000
|
|
|
|
|
|
|
|
3. KD150-G oil tank decorative cover connection stud
Code de marchandise：1270300-257000
|
|
|
|
|
|
|
|
4. Non standard internal plum blossom bolt M6×12 (304 stainless steel)(5 pcs/after-sale)
Code de marchandise：1251100-926000
|
|
|
|
|
|
|
|
5. Plywood M6×11×15(zinc-nickel)(5 pcs/after-sale)
Code de marchandise：1251300-202094
|
|
|
|
|
|
|
|
6. Inner plum blossom shaft shoulder screw M5×13-diameter 7×3 (304 stainless steel)(5 pcs/after-sale)
Code de marchandise：1251100-939094
|
|
|
|
|
|
|
|
7. ZT703-T right handle protect cover
Code de marchandise：1226800-181000
|
|
|
|
|
|
|
|
8. ZT703－T－C1 Front Right Turn Signal Light
Code de marchandise：1176800-034000
|
|
|
|
|
|
|
|
9. Non-standard cross tapping screws ST3.9×12 (Black Zinc)(5 pcs/after-sale)
Code de marchandise：1251200-099000
|
|
|
|
|
|
|
|
10. ZT703-T right hand protect cover Bracket (A)
Code de marchandise：1276801-020000
|
|
|
|
|
|
|
|
11. ZT703-R right rearview mirror
Code de marchandise：1190100-654000
|
|
|
|
|
|
|
|
12. ZT703-R right rearview mirror rubber plug
Code de marchandise：1190100-686000
|
|
|
|
|
|
|
|
13. ZT703－T Front Brake Direct Push Master Cylinder (NS/Φ17.46)
Code de marchandise：1100101-481000
|
|
|
|
|
|
|
|
14. ZT703-T Front Brake Switch (NS)
Code de marchandise：1100101-549000
|
|
|
|
|
|
|
|
15. ZT703-T Front Brake Handle Assembly (NS) (After-sales)
Code de marchandise：1100101-548000
|
|
|
|
|
|
|
|
16. ZT703－T Front Disc Brake Master Cylinder Oil Cup Fixing Bracket (NS)
Code de marchandise：1100101-442000
|
|
|
|
|
|
|
|
17. Non standard internal plum blossom bolt M6×16 (304 stainless steel)(5 pcs/after-sale)
Code de marchandise：1251100-927000
|
|
|
|
|
|
|
|
18. GB16674M6×25 (stainless steel) (5 pcs/after-sale)
Code de marchandise：1250101-103000
|
|
|
|
|
|
|
|
19. ZT703－T Front Disc Brake Half Cover (With Rearview Mirror Hole/Matte Black/NS)(after-sale)
Code de marchandise：1100102-126000
|
|
|
|
|
|
|
|
20. Disc brake pipe copper washer φ 15× φ 10.2 × 1.5 (5 pcs/after-sale)
Code de marchandise：1100101-835000
|
|
|
|
|
|
|
|
21. ZT703-T brake hose FMC-HU section (D/NS)
Code de marchandise：1100101-565000
|
|
|
|
|
|
|
|
22. ZT703-RR Forward Brake Hose Clamping Sleeve(5 pcs/after-sale)
Code de marchandise：1100102-029000
|
|
|
|
|
|
|
|
23. ZT703－RR Front Brake Hose Dual-Pass Connector Mounting Bracket(after-sale)
Code de marchandise：1100101-964000
|
|
|
|
|
|
|
|
24. Single Hole Disc Brake Oil Pipe Bolt M10×1.25×22 (5 pcs/after-sale)
Code de marchandise：1100101-836000
|
|
|
|
|
|
|
|

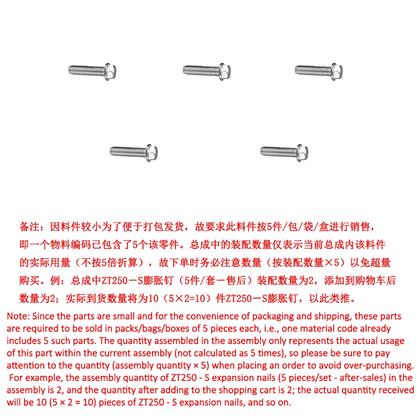

25. Hexagonal small flange internal plum blossom bolt M6 × 16 (9.8/zinc nickel alloy/Ⅱ)(5 pcs/after-sale)
Code de marchandise：1251112-327000
|
|
|
|
|
|
|
|
Inventaire local
|
Prix unitaire (￥)
|
Quantité demandée
|
Quantité
|
montant (￥)
|
Sélection
|
Acheter
|
|
Adéquat
|
4
|
|
|
|
|
|
|
Remarks:T30 or 8# sleeve.Starting from June 24,2025, the original "GB16674 M6×16 Hexagon Flange Bolt (Grade 9.8 / Environmentally Friendly Color Zinc Plated)" for the 703F model will be replaced with this new type of bolt. If you need to purchase the original bolt, you can get it from the 2024 model 368 scooter. To ensure appearance consistency, it is recommended to replace all bolts at the same position with the new ones together.Since the parts are small and for the convenience of packaging and shipping, these parts are required to be sold in packs/bags/boxes of 5 pieces each, i.e., one material code already includes 5 such parts. The quantity assembled in the assembly only represents the actual usage of this part within the current assembly (not calculated as 5 times), so please be sure to pay attention to the quantity (assembly quantity × 5) when placing an order to avoid over-purchasing. For example, the assembly quantity of ZT250 - S expansion nails (5 pieces/set - after-sales) in the assembly is 2, and the quantity after adding to the shopping cart is 2; the actual quantity received will be 10 (5 × 2 = 10) pieces of ZT250 - S expansion nails, and so on.
|
|
|
|
|
|

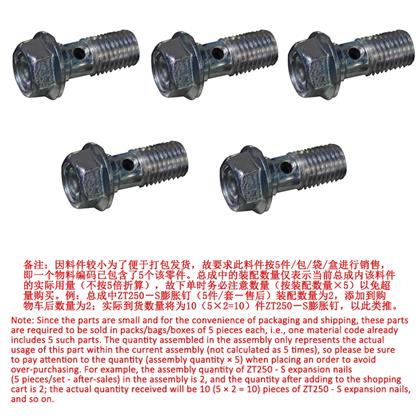

26. Double Hole Disc Brake Oil Pipe Bolt M10×1.25×35
Code de marchandise：1251100-463000
|
|
|
|
|
|
|
|
27. ZT703-T brake hose FC-HU section (D/NS)
Code de marchandise：1100101-566000
|
|
|
|
|
|
|
|
28. ZT703－T Brake Hose Interconnection Section for Left and Right Calipers (A/NS)
Code de marchandise：1100101-429000
|
|
|
|
|
|
|
|
29. ZT703－T Front Left Radial Caliper (NS/Φ27)
Code de marchandise：1100101-483000
|
|
|
|
|
|
|
|
30. ZT703-T Front Disc Brake Pad (TT2517HH)
Code de marchandise：1100101-484000
|
|
|
|
|
|
|
|
31. GB70.1 M10×1.5×50-32 (Grade 10.9/Eco-friendly Color)(5 pcs/after-sale)
Code de marchandise：1250205-285092
|
|
|
|
|
|
|
|
32. ZT703－T Front Right Radial Caliper (NS/Φ27)
Code de marchandise：1100101-482000
|
|
|
|
|
|
|
|
33. Wheel speed sensor(A)
Code de marchandise：1181200-118000
|
|
|
|
|
|
|
|
34. Wheel speed sensor clamp(after-sale)
Code de marchandise：1226401-212000
|
|
|
|
|
|
|
|
35. ZT703－RR Front Brake Hose Directional Upper Bracket
Code de marchandise：1100101-308000
|
|
|
|
|
|
|
|
36. Hexagonal Small Flanged Internal Star Bolt M6×12 (Grade 9.8 / Zinc-Nickel Alloy)(5 pcs/after-sale)
Code de marchandise：1251112-312000
|
|
|
|
|
|
|
|
Inventaire local
|
Prix unitaire (￥)
|
Quantité demandée
|
Quantité
|
montant (￥)
|
Sélection
|
Acheter
|
|
Adéquat
|
4
|
|
|
|
|
|
|
Note: Starting from June 24,2025, the original "1250101-059000 GB16674M6×12 (Grade 9.8 / Eco-friendly Coated)" for the 703F model has been replaced with this new bolt. If you need to purchase the original bolt, you can get it for the 2024 368 scooter model. To ensure consistent appearance, it is recommended to replace all bolts at the same location with the new version together. Since this part is small, to facilitate packaging and shipping, it is required to sell this part in units of 5 pieces per pack/bag/box, meaning one part number corresponds to 5 units of this component. The assembly quantity listed in the assembly only indicates the actual usage of this part in the current assembly (it is not multiplied by 5), so please pay close attention to the quantity when placing an order (calculate as assembly quantity × 5) to avoid over-purchasing. Example: The assembly quantity of the ZT250－S expansion bolt (5 pcs/set - after-sales) in the assembly is 2, and the quantity added to the shopping cart is 2; the actual delivered quantity will be 10 (5×2= 10) pieces of ZT250－S expansion bolts, and so on.
|
|
|
|
|
|
37. ZT703－RR Front Brake Hose Directional Lower Bracket
Code de marchandise：1100101-307000
|
|
|
|
|
|
|
|
38. ZT703-RR Radiator Fan Plug Fixed Bracket(after-sale)
Code de marchandise：1226801-144000
|
|
|
|
|
|
|
|
39. ZT703-F double-hole pipe clamp (Φ 10)(after-sale)
Code de marchandise：1100102-007000
|
|
|
|
|
|
|
|
40. ZT250-S flanging sleeve(φ6.4×φ9×6＋φ20×2)(5 pcs/after-sale)
Code de marchandise：1274101-015000
|
|
|
|
|
|
|
|
41. ZT250-S Flanging bushing buffer(5 pcs/after-sale)
Code de marchandise：1244100-137000
|
|
|
|
|
|
|
|
42. ZT703－RR Hydraulic Control Unit Mounting Cylinder Link
Code de marchandise：1100101-228000
|
|
|
|
|
|
|
|
43. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 20 (grade 10.9)(5 pcs/after-sale)
Code de marchandise：1251100-940094
|
|
|
|
|
|
|
|
44. Non standard plum blossom groove with column pan head bolt M8 × 1.25 × 40- 25 (grade 10.9)(after-sale)
Code de marchandise：1251100-697000
|
|
|
|
|
|
|
|
45. ZT703-T Hydraulic Control Unit Support (D) Assembly
Code de marchandise：1100101-877000
|
|
|
|
|
|
|
|
46. Disc brake oil pipe hexagon head bolt M10 × 1 × 20 (after-sale)
Code de marchandise：1100101-837000
|
|
|
|
|
|
|
|
47. ZT703-T brake hose RMC-HU section (D/JL)
Code de marchandise：1100101-567000
|
|
|
|
|
|
|
|

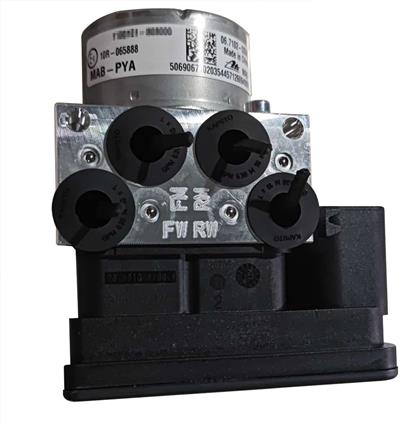

48. ZT703-T ABS hydraulic control unit (D/NS/wet type)
Code de marchandise：1100101-997000
|
|
|
|
|
|
|
|
49. Disc brake pipe bolt M10×1-22
Code de marchandise：1251100-112000
|
|
|
|
|
|
|
|
50. ZT703－T Rear Brake Master Cylinder (JL)
Code de marchandise：1100101-266000
|
|
|
|
|
|
|
|
51. ZT703-T brake hose RC-HU section (D/JL)
Code de marchandise：1100101-568000
|
|
|
|
|
|
|
|
52. Wheel Speed Sensor (Cable Length L=800/Angled Head)
Code de marchandise：1100300-286000
|
|
|
|
|
|
|
|
53. ZT310-R Rear disc brake pipe clamp(after-sale)
Code de marchandise：1224201-027000
|
|
|
|
|
|
|
|
54. ZT703-T Rear Brake Fluid Cup Fixing Bracket (JL/Ⅱ)
Code de marchandise：1100101-651000
|
|
|
|
|
|
|
|
55. ZT703－T Rear Floating Caliper Assembly (JL)
Code de marchandise：1100101-243000
|
|
|
|
|
|
|
|
56. ZT703-F rear disc brake pad (TFT101)
Code de marchandise：1100101-262000
|
|
|
|
|
|
|
|
57. ZT703-T Right Turn Signal Wire Box
Code de marchandise：1226800-243000
|
|
|
|
|
|
|
|
58. Pin tie (Black 4.8×130)(5 pcs/after-sale)
Code de marchandise：1224101-012000
|
|
|
|
|
|
|
|
59. Fully synthetic brake oil DOT4 (G/800g/bottle)
Code de marchandise：1100101-606000
|
|
|
|
|
|
|
|
60. ZT703－TZT703－T Front brake master cylinder reservoir（NS）
Code de marchandise：1100101-607000
|
|
|
|
|
|
|
|
